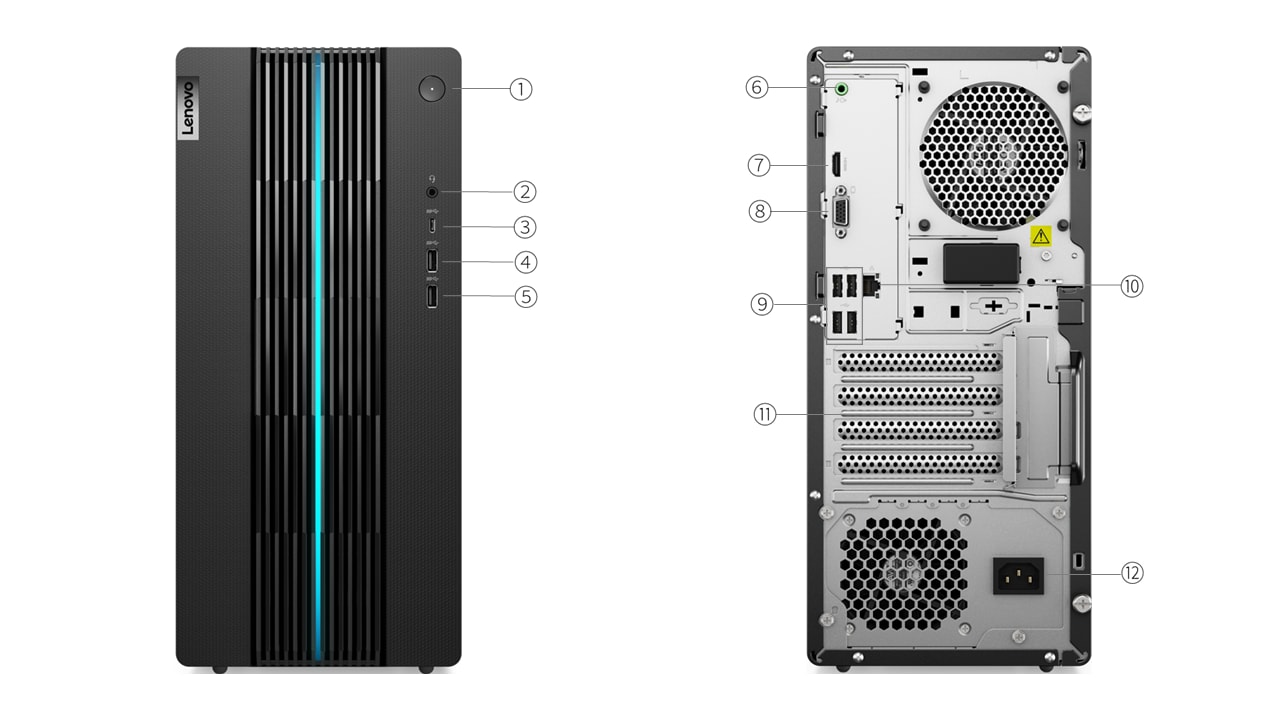

Overview
1. Power button | 7. HDMI 1.4 |
2. Headphone / microphone combo jack (3.5mm) | 8. VGA |
3. USB-C 3.2 Gen 1 | 9. 4x USB 2.0 |
4. USB 3.2 Gen 1 | 10. Ethernet (RJ-45) |
5. USB 3.2 Gen 2 | 11. Optional ports on expansion cards |
6. Audio line-out (3.5mm) | 12. Power connector |
Notes:
- Items with * are only available on selected models
- The onboard video ports VGA and HDMI are disabled on the models with discrete graphics
Performance
Processor
Processor
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| AMD Ryzen 5 5600G | 6 | 12 | 3.9GHz | 4.4GHz | 3MB L2 / 16MB L3 | DDR4-3200 | AMD Radeon™ Graphics |
| AMD Ryzen 7 5700G | 8 | 16 | 3.8GHz | 4.6GHz | 4MB L2 / 16MB L3 | DDR4-3200 | AMD Radeon Graphics |
| AMD Ryzen 7 5800 | 8 | 16 | 3.4GHz | 4.6GHz | 4MB L2 / 32MB L3 | DDR4-3200 | - |
Operating System
Operating System[1]
- Windows® 11 Pro
- Windows 11 Home
- Windows 11 Home Single Language
- No operating system
Notes:
- 1 :Some features may not be supported on the system with Linux preload, including but not limited to Intel® RST RAID, Human Presence Detection, etc.
Graphics
Graphics[1]
| Graphics | Type | Memory | Boost Clock | TGP | Connector | Max Resolution | Key Features | Remark |
| NVIDIA® GeForce RTX™ 3060 | Discrete | 12G GDDR6 | - | - | 1x HDMI® 2.1, 3x DP 1.4 | 7680x4320@60Hz(HDMI), 5120x2880@60Hz(DP) | DirectX® 12 | - |
| AMD Radeon Graphics | Integrated | Shared | - | - | 1x HDMI 1.4, 1x VGA | 3840x2160@30Hz(HDMI), 2048x1536@50Hz(VGA) | DirectX 12 | - |
| AMD Radeon RX 6400 | Discrete | 4GB GDDR6 | - | - | 1x HDMI 2.1, 1x DP 1.4 | 7680x4320@60Hz(HDMI), 7680x4320@60Hz(DP) | DirectX 12 | - |
| AMD Radeon RX 6500XT | Discrete | 4GB GDDR6 | - | - | 1x HDMI 2.1, 1x DP 1.4 | 7680x4320@60Hz(HDMI), 7680x4320@60Hz(DP) | DirectX 12 | - |
| NVIDIA GeForce GTX 1660 SUPER | Discrete | 6GB GDDR6 | - | - | 1x HDMI 2.0, 1x DP 1.4, 1x DVI-D | 4096x2160@60Hz(HDMI), 5120x3200@60Hz (DP), 2560x1600@60Hz(DVI-D) | DirectX 12 | - |
| NVIDIA GeForce RTX 3060 Ti | Discrete | 8G GDDR6 | - | - | 3x DP 1.4a, 1x HDMI 2.1 | 7680x4320@60Hz(HDMI), 7680*4320@120Hz(DP) | DirectX 12 | - |
Notes:
- 1 :The information of integrated graphics are not applicable for the models without integrated graphics (for the details, please refer to processor section)
Monitor Support
Monitor Support
Supports up to 2 independent displays via onboard ports (VGA and HDMI), more displays support via discrete graphics
Chipset
Memory
Notes:
- 1 :The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support[1]
Up to two drives, 1x 3.5" HDD + 1x M.2 SSD
• 3.5" HDD up to 2TB
• M.2 SSD up to 1TB
Storage Type
| Disk Type | Interface | RPM | Offering | Security |
| 3.5" SATA HDD | SATA 6Gb/s | 7.2K | - | - |
| M.2 2280 SSD | PCIe® NVMe®, PCIe 3.0 x4 | - | - | - |
| M.2 2280 SSD | PCIe NVMe, PCIe 4.0 x4 | - | - | - |
Notes:
- 1 :The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Power Supply
Design
Input Device
Mechanical
Expansion Slots
- One PCIe 3.0 x1, full height
- One PCIe 3.0 x16, full height
- Two M.2 slots (one for WLAN, one for SSD)
Cooling System (Fan & Cooler)
- (Optional) 1x front system fan, 1x rear system fan
- (Optional) 1x rear system fan
Notes:
- 1 :The system dimensions may vary depending on configurations.
- 2 :The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
WLAN + Bluetooth®[1]
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 card
- Wi-Fi 6E, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1
- No WLAN and Bluetooth
Notes:
- 1 :Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
Ports[1]
Front Ports
- 1x USB 3.2 Gen 1
- 1x USB 3.2 Gen 2
- 1x USB-C® 3.2 Gen 1
- 1x headphone / microphone combo jack (3.5mm)
Rear Ports[2]
- 1x HDMI 1.4
- 1x VGA
- 4x USB 2.0
- 1x Ethernet (RJ-45)
- 1x audio-out (3.5mm)
- 1x power connector
Notes:
- 1 :The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
- 2 :For video ports on discrete graphics, please see graphics section
Security & Privacy
Service
Warranty[1]
Base Warranty
- 1-year courier or carry-in service
- 1-year mail-in service
- 1-year limited onsite service
- 2-year courier or carry-in service
- 3-year courier or carry-in service
- OB
Notes:
- 1 :The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Certifications
Green Certifications[1]
Notes:
- 1 :The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
