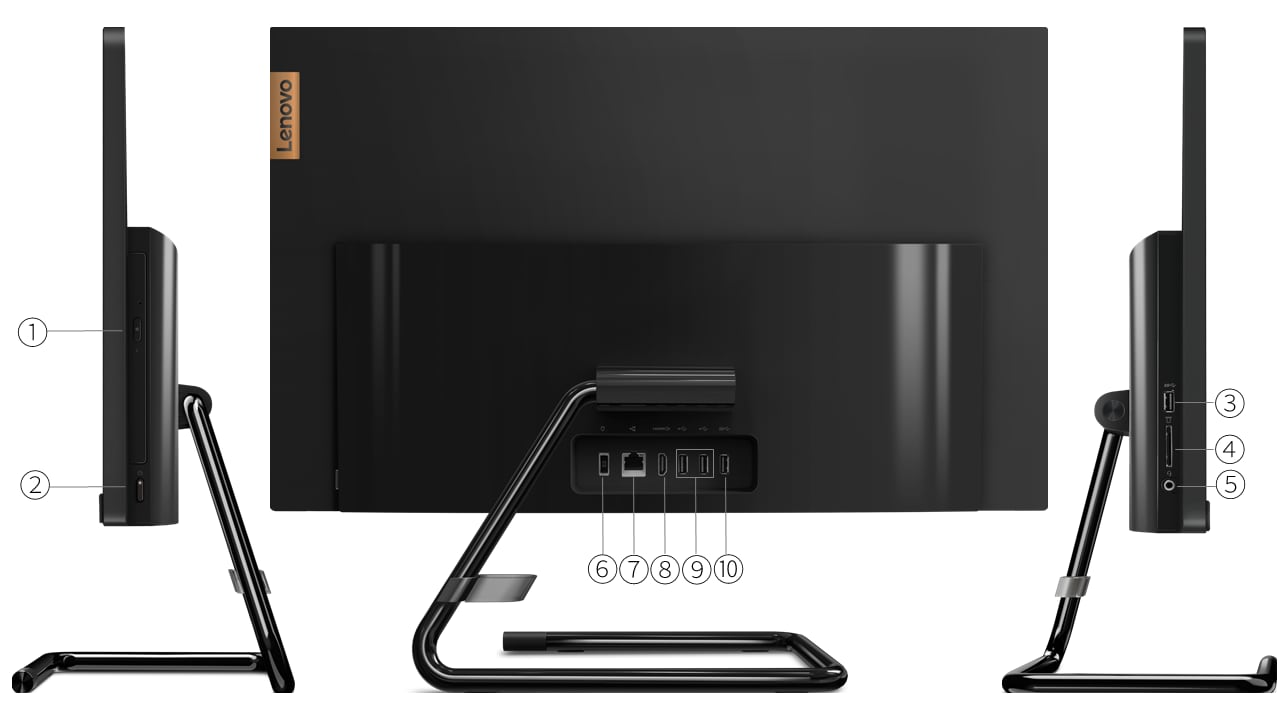

Overview
1. Optical drive | 6. Power connector |
2. Power button | 7. Ethernet (RJ-45) |
3. USB 3.1 Gen 1 | 8. HDMI 1.4 out |
4. Card reader | 9. 2x USB 2.0 |
5. Headphone / microphone combo jack (3.5mm) | 10. USB 3.1 Gen 1 |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Celeron J4025 | 2 | 2 | 2.0GHz | 2.9GHz | 4MB | DDR4-2400 | Intel UHD Graphics 600 |
| Celeron J4105 | 4 | 4 | 1.5GHz | 2.5GHz | 4MB | DDR4-2400 | Intel UHD Graphics 600 |
| Celeron J4005 | 2 | 2 | 2.0GHz | 2.7GHz | 4MB | DDR4-2400 | Intel UHD Graphics 600 |
| Pentium Silver J5005 | 4 | 4 | 1.5GHz | 2.8GHz | 4MB | DDR4-2400 | Intel UHD Graphics 605 |
| Pentium Silver J5040 | 4 | 4 | 2.0GHz | 3.2GHz | 4MB | DDR4-2400 | Intel UHD Graphics 605 |
Operating System
Operating System**[1]
- Windows® 11 Home
- Windows 11 Home Single Language
- Windows 10 Home 64
- Windows 10 Home 64 Single Language
- FreeDOS
Notes:
- 1 :Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID, Human Presence Detection, etc.
Graphics
Graphics**[1]
| Graphics | Type | Memory | Connector | Max Resolution | Key Features |
| Intel UHD Graphics 600 | Integrated | Shared | 1x HDMI® 1.4 | 1920x1080@60Hz(HDMI) | DirectX® 12 |
| Intel UHD Graphics 605 | Integrated | Shared | 1x HDMI 1.4 | 1920x1080@60Hz(HDMI) | DirectX 12 |
Notes:
- 1 :The information of integrated graphics are not applicable for the models without integrated graphics (for the details, please refer to processor section)
Monitor Support
Monitor Support
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via HDMI
Chipset
Memory
Notes:
- 1 :The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
- 2 :Installed memory is actually 2666MHz, but may run at 2400MHz depending on the memory support capability of processor
Storage
Storage Support[1][2]
Up to two drives, 1x 2.5" HDD + 1x M.2 SSD
• 2.5" HDD up to 1TB
• M.2 SSD up to 512GB
Storage Type***
| Disk Type | Interface | RPM | Security |
| 2.5" SATA HDD | SATA 6Gb/s | 5.4K | - |
| M.2 2242 SSD | PCIe® NVMe® | - | - |
| M.2 2280 SSD | PCIe NVMe | - | - |
Notes:
- 1 :The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
- 2 :2.5" HDD bracket kit only comes with pre-configured HDD models
Removable Storage
Multi-Media
Power Supply
Design
Display
Display[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle (L/R/U/D) | Key Features |
| 23.8" | FHD (1920x1080) | None | IPS | 250 nits | Anti-glare | 16:9 | 1000:1 | - | horizontal: +/- 89°, vertical: +/- 89° | Borderless |
Notes:
- 1 :California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Keyboard**
- Lenovo Calliope Keyboard (USB connector), black
- Lenovo Calliope Keyboard (USB connector), white
Mechanical
Notes:
- 1 :The system dimensions may vary depending on configurations.
- 2 :The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
WLAN + Bluetooth®**[1]
- 802.11ac 1x1 Wi-Fi® + Bluetooth 4.0, M.2 card
- 802.11ac 2x2 Wi-Fi + Bluetooth 4.0, M.2 card
Notes:
- 1 :Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
Ports[1]
Notes:
- 1 :The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
- 2 :For video ports on discrete graphics, please see graphics section
Security & Privacy
Service
Warranty[1]
Base Warranty**
- 1-year courier or carry-in service
- 1-year mail-in service
- 1-year limited onsite service
- 2-year courier or carry-in service
- 3-year courier or carry-in service
- OB
Notes:
- 1 :The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Certifications
Green Certifications[1]
Notes:
- 1 :The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
