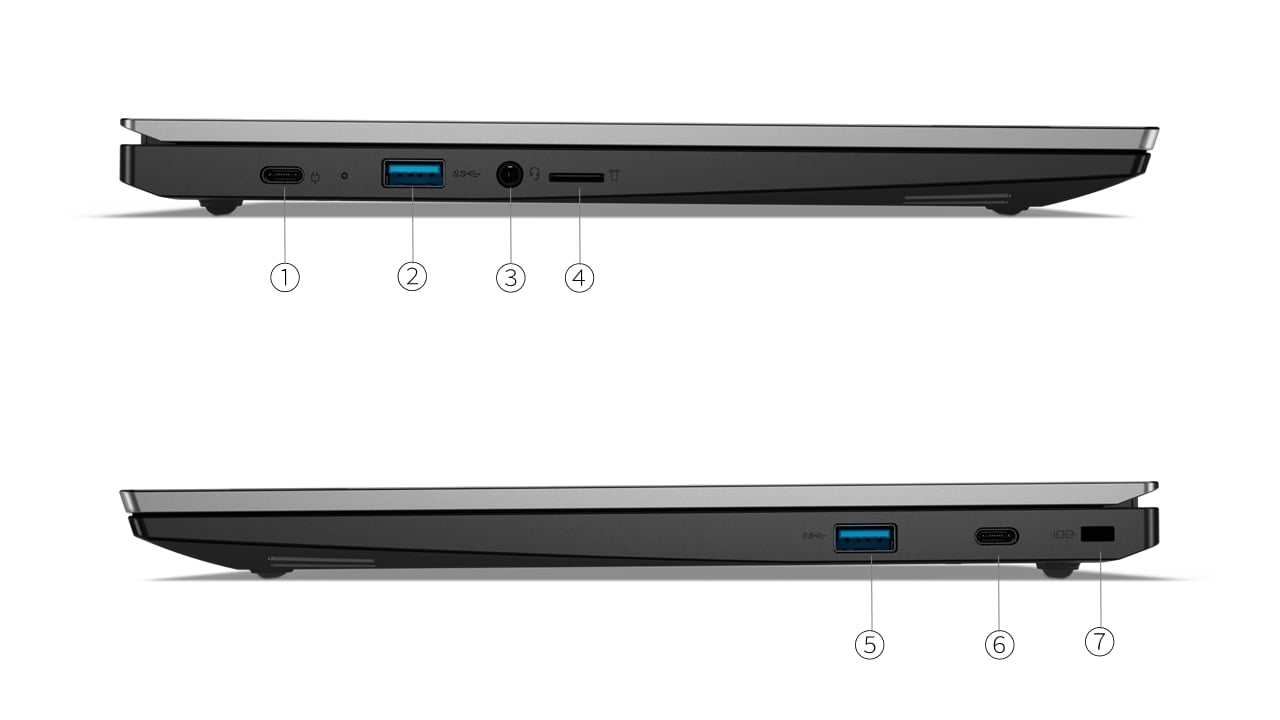

Overview
1. USB-C 3.1 Gen 1 | 5. USB 3.1 Gen 1 |
2. USB 3.1 Gen 1 | 6. USB-C 3.1 Gen 1 |
3. Headphone / microphone combo jack (3.5mm) | 7. Kensington Security Slot |
4. MicroSD card reader |
Performance
Processor
Monitor Support
Monitor Support
Supports up to 2 independent displays (native display and 1 external monitor via USB-C)
• USB-C supports up to 4K@30Hz
Chipset
Memory
Removable Storage
Multi-Media
Battery
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Design
Connectivity
Network
Ports[1]
Standard Ports
- 2x USB 3.1 Gen 1
- 1x USB-C 3.1 Gen 1 (support data transfer and Power Delivery)
- 1x USB-C 3.1 Gen 1 (support data transfer, Power Delivery and DisplayPort™)
- 1x microSD card reader
- 1x Headphone / microphone combo jack (3.5mm)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3: 40 Gbit/s; FireWire 400: 400 Mbit/s; FireWire 800: 800 Mbit/s
Security & Privacy
Environmental
Operating Environment
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When charging the battery pack, the environment temperature must be at least 0 ℃ (32 ℉).
Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
