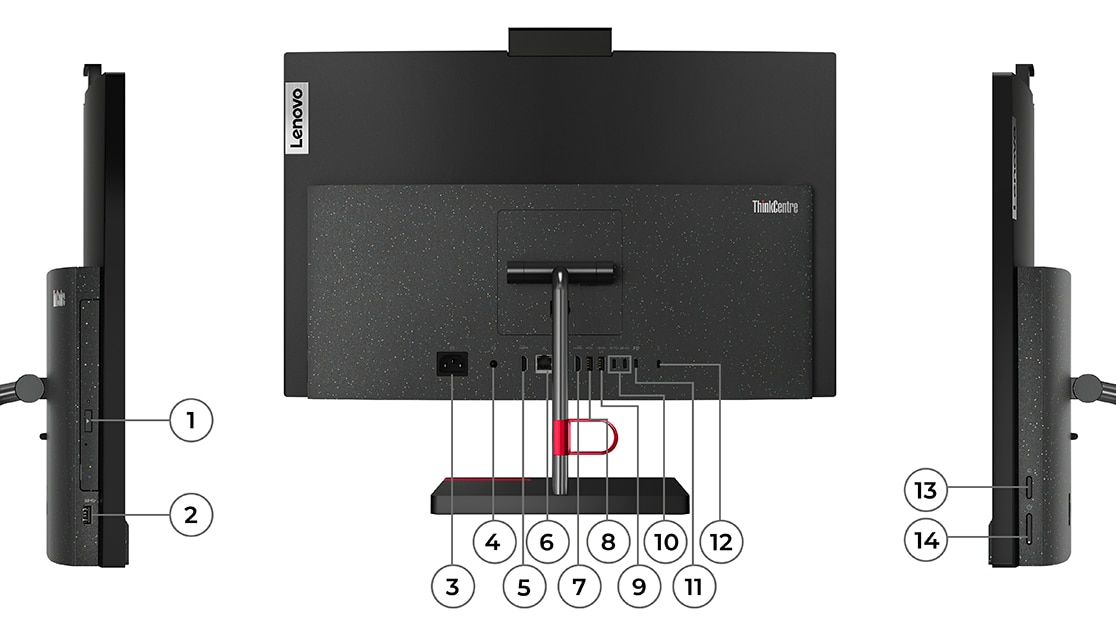

Overview
1. Optical drive eject button * | 8. USB 2.0 |
2. USB 3.2 Gen 1 | 9. USB 3.2 Gen 2 |
3. Power connector | 10. 2x USB-C 3.2 Gen 2 |
4. Headphone / microphone combo jack (3.5mm) | 11. USB-C 2.0 (support data transfer, PD 3.0) |
5. HDMI-in 1.4 | 12. Kensington Security Slot |
6. Ethernet (RJ-45) | 13. HDMI Switch Key |
7. HDMI-out 2.1 TMDS | 14. Power button |
Notes:
- Items with * are only available on selected models
Performance
Processor
Processor**[1]
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Core i3-1220P | 10 (2 P-core + 8 E-core) | 12 | P-core 1.5GHz / E-core 1.1GHz | P-core 4.4GHz / E-core 3.3GHz | 12MB | DDR5-4800 | Intel UHD Graphics |
| Core i5-12450H | 8 (4 P-core + 4 E-core) | 12 | P-core 2.0GHz / E-core 1.5GHz | P-core 4.4GHz / E-core 3.3GHz | 12MB | DDR5-4800 | Intel UHD Graphics |
| Core i5-12500H | 12 (4 P-core + 8 E-core) | 16 | P-core 2.5GHz / E-core 1.8GHz | P-core 4.5GHz / E-core 3.3GHz | 18MB | DDR5-4800 | Intel Iris® Xe Graphics |
| Core i7-12700H | 14 (6 P-core + 8 E-core) | 20 | P-core 2.3GHz / E-core 1.7GHz | P-core 4.7GHz / E-core 3.5GHz | 24MB | DDR5-4800 | Intel Iris Xe Graphics |
Notes:
- Intel Iris Xe Graphics capability requires system to be configured with dual-channel memory. On the system with single-channel memory, Intel Iris Xe Graphics will function as Intel UHD Graphics.
Operating System
Operating System**[1]
- Windows® 11 Pro
- Windows 11 Home
- Windows 11 Home Single Language
- Ubuntu Linux
- No operating system
Notes:
- Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID, Human Presence Detection, etc.
Graphics
Graphics**[1][2]
| Graphics | Type | Memory | Connector | Max Resolution | Key Features |
| Intel Arc™ A370M Graphics | Discrete | 4GB GDDR6 | 1x HDMI® 2.1 TMDS | 3840x2160@60Hz(HDMI) | DirectX® 12 Ultimate |
| Intel Iris Xe Graphics | Integrated | Shared | 1x HDMI 2.1 TMDS | 3840x2160@60Hz(HDMI) | DirectX 12.1 |
| Intel UHD Graphics | Integrated | Shared | 1x HDMI 2.1 TMDS | 3840x2160@60Hz(HDMI) | DirectX 12.1 |
Notes:
- The information of integrated graphics are not applicable for the models without integrated graphics (for the details, please refer to processor section)
- Intel Iris Xe Graphics capability requires system to be configured with dual-channel memory. On the system with single-channel memory, Intel Iris Xe Graphics will function as Intel UHD Graphics.
Monitor Support
Monitor Support
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via HDMI
Chipset
Memory
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support[1]
- Up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 2TB • M.2 SSD up to 1TB
- For installing HDD storage, assembly kits are needed. The kits only come with HDD models.
Storage Type**
| Disk Type | Interface | RPM | Security |
| 2.5" SATA HDD | SATA 6Gb/s | 5.4K | - |
| M.2 2280 SSD | PCIe® NVMe®, PCIe 3.0 x4 | - | - |
| M.2 2280 SSD | PCIe NVMe, PCIe 4.0 x4 | - | Opal 2.0 |
| M.2 2280 SSD | PCIe NVMe, PCIe 4.0 x4 Value | - | Opal 2.0 |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Camera**
- 5.0-megapixel, fixed focus
- 5.0-megapixel IR camera, fixed focus
- 5.0-megapixel IR camera, fixed focus, with AI chip
- No camera
Power Supply
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle (L/R/U/D) | Key Features |
| 23.8" | FHD (1920x1080) | None | IPS | 250 nits | Anti-glare | 16:9 | 1000:1 | 72% NTSC | 89°/89°/89°/89° | Borderless design, low blue light, flicker free |
| 23.8" | FHD (1920x1080) | Multi-touch | IPS | 250 nits | Anti-glare | 16:9 | 1000:1 | 72% NTSC | 89°/89°/89°/89° | Borderless design, low blue light, flicker free |
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Keyboard**
- Lenovo Calliope Keyboard (USB connector), black
- Lenovo Calliope Wireless Keyboard, black
- No keyboard
Mouse**
- Lenovo Calliope Mouse (USB connector), black
- Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), black
- Euterpe Wireless Mouse, grey
- No mouse
Mechanical
Dimensions (WxDxH)[1]
| Models | Dimensions |
| Models with liftable monitor stand | 541 x 220 x 482 mm (21.3 x 8.7 x 19 inches) |
| Models with monitor stand | 541 x 209.9 x 433.7 mm (21.3 x 8.3 x 17.1 inches) |
Packaging Dimensions (WxDxH)
- Models with liftable monitor stand: 658 x 264 x 567 mm (25.9 x 10.4 x 22.3 inches )
- Models with monitor stand: 695 x 196 x 569 mm (27.4 x 7.7 x 22.4 inches)
Weight[2]
| Models | Weight |
| Models with liftable monitor stand | Around 7.65 kg (16.9 lbs) |
| Models with monitor stand | Around 7.43 kg (16.4 lbs) |
Packaging Weight
- Models with monitor stand: 9.69 kg (21.4 lbs)
- Models with liftable monitor stand: 10.3 kg (22.7 lbs)
Bays
- 1x 2.5" disk bay
- 1x slim ODD bay
- For installing HDD storage, assembly kits are needed. The kits only come with HDD models.
Stand**
- Monitor stand, supports -5° to +25° tilt, left & right 45° swivel
- Liftable monitor stand, supports -5° to +18° tilt, left & right 45° swivel, up to 100mm lift
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
WLAN + Bluetooth®**[1]
- Intel Wi-Fi® 6 AX201, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 Card
- Intel Wireless-AC 9560, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 5.1, M.2 card
- Realtek RTL8822CE, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 5.0, M.2 card
- Realtek Wi-Fi 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi + Bluetooth 5.1, M.2 card
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
Ports[1]
Rear Ports[2]
- 1x HDMI-in 1.4
- 1x HDMI-out 2.1 TMDS
- 2x USB-C® 3.2 Gen 2
- 1x USB-C 2.0 (Supports data transfer, Power Delivery 3.0)
- 1x USB 2.0
- 1x USB 3.2 Gen 2 (Supports smart power-on)
- 1x Ethernet (RJ-45)
- 1x headphone / microphone combo jack (3.5mm)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
- For video ports on discrete graphics, please see graphics section
Monitor Cable
Security & Privacy
Service
Warranty[1]
Notes:
- The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Certifications
Green Certifications[1]
Notes:
- The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
Other Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
