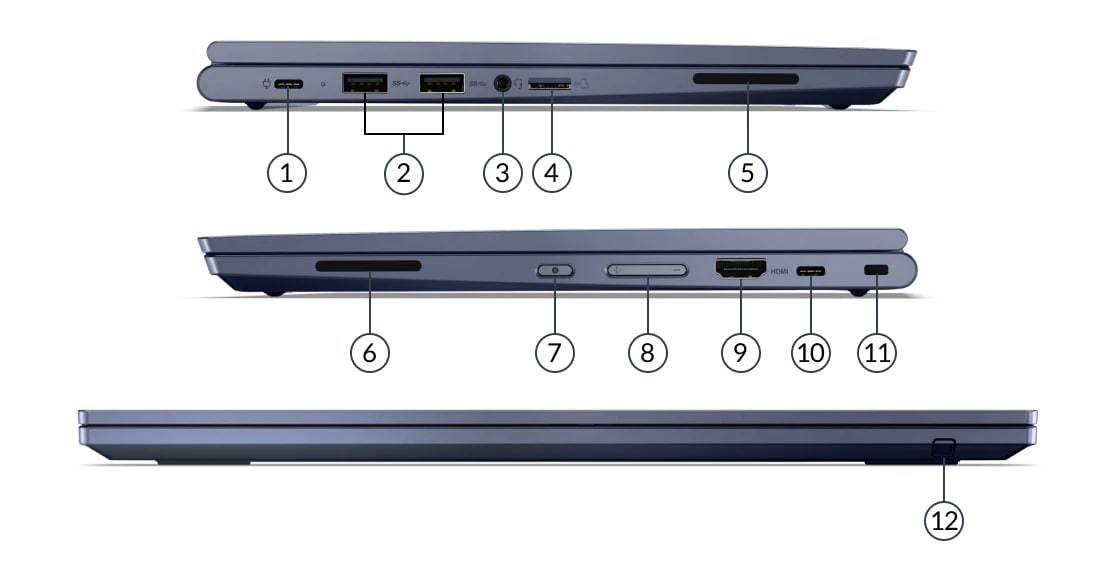

Overview
1. USB-C 3.2 Gen 1 | 7. Power button |
2. 2x USB 3.2 Gen 1 | 8. Volume button |
3. Headphone / microphone combo jack (3.5mm) | 9. HDMI 2.0 |
4. microSD card reader | 10. USB-C 3.2 Gen 1 |
5. Speaker | 11. Kensington Security Slot |
6. Speaker | 12. Pen slot |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| AMD Athlon Gold 3150C | 2 | 4 | 2.4GHz | 3.3GHz | 1MB L2 / 4MB L3 | DDR4-2400 | AMD Radeon™ Graphics |
| AMD Ryzen 3 3250C | 2 | 4 | 2.6GHz | 3.5GHz | 1MB L2 / 4MB L3 | DDR4-2400 | AMD Radeon Graphics |
| AMD Ryzen 5 3500C | 4 | 8 | 2.1GHz | 3.7GHz | 2MB L2 / 4MB L3 | DDR4-2400 | AMD Radeon Graphics |
| AMD Ryzen 7 3700C | 4 | 8 | 2.3GHz | 4.0GHz | 2MB L2 / 4MB L3 | DDR4-2400 | AMD Radeon Graphics |
Operating System
Operating System**
- Google Chrome OS
- Google Chrome OS (with Chrome Education Upgrade)
- Google Chrome OS (with Chrome Enterprise Upgrade)
Graphics
Monitor Support
Monitor Support
- Ryzen 5 / Ryzen 7 model: supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB-C®) • HDMI supports up to 3840x2160@60Hz • USB-C supports up to 3840x2160@60Hz
- Athlon / Ryzen 3 model: supports up to 3 independent displays (native display and 2 external monitors via HDMI and USB-C) • HDMI supports up to 3840x2160@30Hz • USB-C supports up to 3840x2160@30Hz
Chipset
Memory
Max Memory[1]
- 4GB soldered memory, not upgradable
- 8GB soldered memory, not upgradable
- 16GB soldered memory, not upgradable
Memory Slots**
- Memory soldered to systemboard, no slots (4GB model)
- Memory soldered to systemboard, no slots, dual-channel (8GB or 16GB models)
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
- Installed memory is actually 3200MHz but run at 2400MHz due to processor limitation
Storage
Storage Support[1][2]
- One drive, up to 256GB M.2 2280 SSD
- 32GB eMMC 5.1 on systemboard
- 64GB eMMC 5.1 on systemboard
Storage Type**
| Disk Type | Interface | RPM | Security |
| Flash Memory | eMMC | - | - |
| M.2 2242 SSD | PCIe NVMe®, PCIe 3.0 x2 | - | - |
| M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | - | - |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
- System has one eMMC on systemboard or one M.2 2280 SSD exclusively
Removable Storage
Multi-Media
Microphone**
- Dual array microphone, far-field
- Dual array far-field microphone and a single microphone (models with rear camera)
Camera**
- Front HD 720p, with privacy shutter, fixed focus
- Front HD 720p, with privacy shutter, fixed focus; rear 5.0-megapixel, autofocus
Battery
Battery
Integrated Li-Polymer 51Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Power Adapter**[1]
- 45W USB-C (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 45W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
Notes:
- AC adapter offerings depend on the country.
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
| 13.3" | FHD (1920x1080) | Multi-touch | IPS | 300 nits | Anti-glare | 16:9 | 1400:1 | 72% NTSC | 170° | - |
| 13.3" | UHD (3840x2160) | Multi-touch | OLED | 400 nits | Anti-reflection, Anti-smudge | 16:9 | 100000:1 | 100% DCI-P3 | 170° | - |
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Multi-mode
Input Device
Mechanical[1]
Notes:
- The system dimensions and weight vary depending on configurations.
Connectivity
Network
WLAN + Bluetooth®**[1][2]
- Realtek RTL8822CE, 802.11ac Dual Band 2x2 Wi-Fi® + Bluetooth 5.0, M.2 card
- Intel® Wi-Fi 6 AX200, 802.11ax 2x2 Wi-Fi + Bluetooth 5.0, M.2 card
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitation
- Intel Wi-Fi 6 full features might be limited by country-level restrictions. Intel Wi-Fi 6 card supports BT5.2 but is limited to BT5.0 by Chrome OS.
Ports[1]
Standard Ports
- 2x USB 3.2 Gen 1
- 2x USB-C 3.2 Gen 1 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x HDMI 2.0
- 1x microSD card reader
- 1x Headphone / microphone combo jack (3.5mm)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
Docking
Docking
Various docking solutions supported via USB-C.
For more compatible docking solutions, please visit Docking for ThinkPad® C13 Yoga® Gen 1 Chromebook
Security & Privacy
Manageability
Service
Warranty
Base Warranty**[1]
- 1-year depot service
- 1-year courier with 2-year system board service (Korea only)
- 1-year limited onsite service
- No base warranty
Notes:
- More information of warranty policy, please access https://pcsupport.lenovo.com/warranty
Environmental
Operating Environment
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
