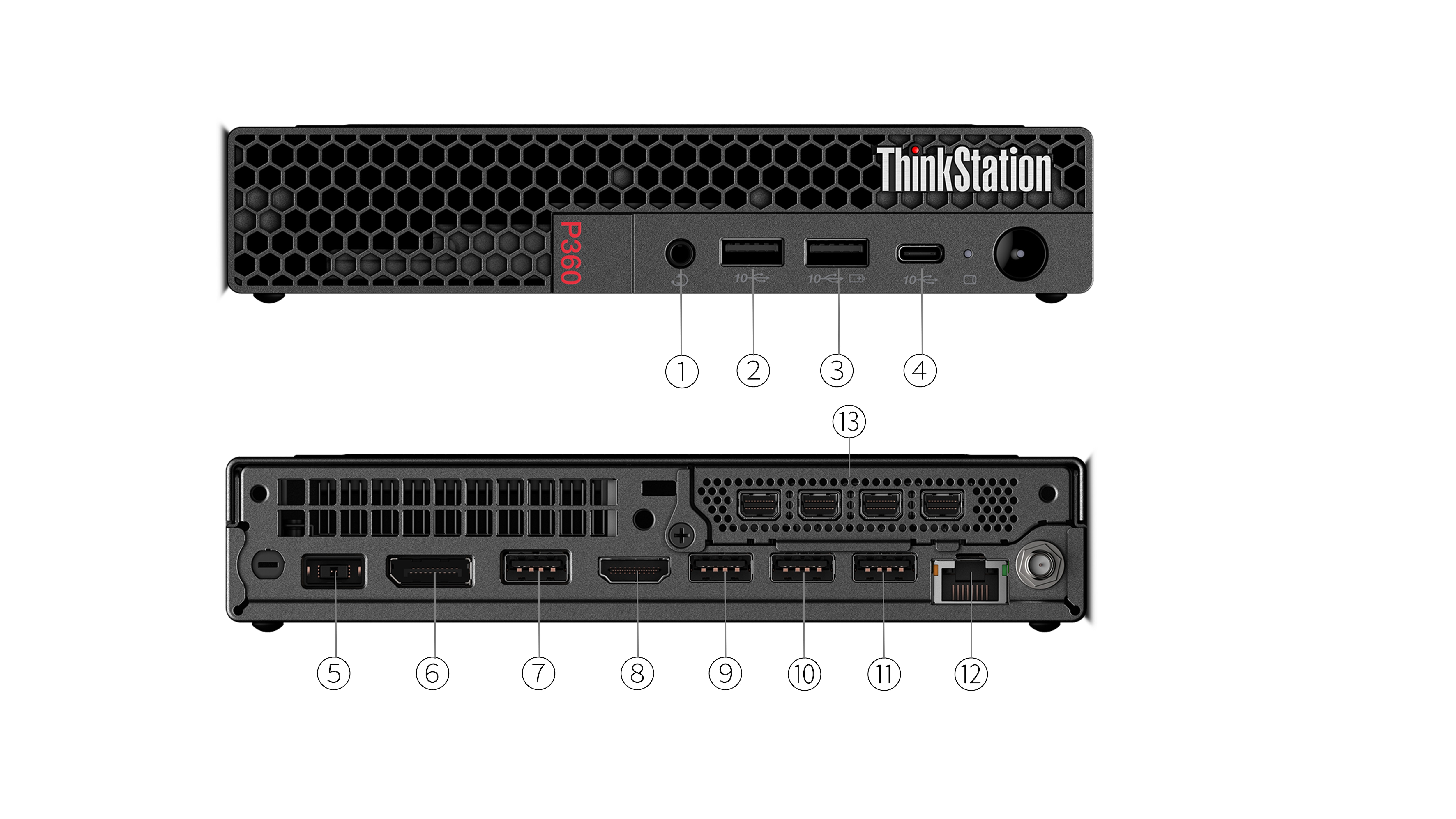

Overview
1. Headphone / microphone combo jack (3.5mm) | 8. HDMI 2.1 TMDS |
2. USB 3.2 Gen 2 | 9. USB 3.2 Gen 1 (with Smart Power On feature) |
3. USB 3.2 Gen 2 (Always On and fast charge) | 10. USB 3.2 Gen 2 |
4. USB-C 3.2 Gen 2 | 11. USB 3.2 Gen 2 |
5. Power connector | 12. Ethernet (RJ-45) |
6. DisplayPort 1.4 | 13. 2 Punch out ports or expansion card * |
7. USB 3.2 Gen 1 |
Notes:
- Items with * are only available on selected models
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Core i3-12100 | 4 (4 P-core + 0 E-core) | 8 | P-core 3.3GHz | P-core 4.3GHz | 12MB | DDR5-4800 | Intel UHD Graphics 730 |
| Core i3-12100T | 4 (4 P-core + 0 E-core) | 8 | P-core 2.2GHz | P-core 4.1GHz | 12MB | DDR5-4800 | Intel UHD Graphics 730 |
| Core i3-12300 | 4 (4 P-core + 0 E-core) | 8 | P-core 3.5GHz | P-core 4.4GHz | 12MB | DDR5-4800 | Intel UHD Graphics 730 |
| Core i3-12300T | 4 (4 P-core + 0 E-core) | 8 | P-core 2.3GHz | P-core 4.2GHz | 12MB | DDR5-4800 | Intel UHD Graphics 730 |
| Core i5-12400T | 6 (6 P-core + 0 E-core) | 12 | P-core 1.8GHz | P-core 4.2GHz | 18MB | DDR5-4800 | Intel UHD Graphics 730 |
| Core i5-12600 | 6 (6 P-core + 0 E-core) | 12 | P-core 3.3GHz | P-core 4.8GHz | 18MB | DDR5-4800 | Intel UHD Graphics 770 |
| Core i5-12400 | 6 (6 P-core + 0 E-core) | 12 | P-core 2.5GHz | P-core 4.4GHz | 18MB | DDR5-4800 | Intel UHD Graphics 730 |
| Core i5-12500T | 6 (6 P-core + 0 E-core) | 12 | P-core 2.0GHz | P-core 4.4GHz | 18MB | DDR5-4800 | Intel UHD Graphics 770 |
| Core i5-12600T | 6 (6 P-core + 0 E-core) | 12 | P-core 2.1GHz | P-core 4.6GHz | 18MB | DDR5-4800 | Intel UHD Graphics 770 |
| Core i5-12500 | 6 (6 P-core + 0 E-core) | 12 | P-core 3.0GHz | P-core 4.6GHz | 18MB | DDR5-4800 | Intel UHD Graphics 770 |
| Core i7-12700T | 12 (8 P-core + 4 E-core) | 20 | P-core 1.4GHz / E-core 1.0GHz | P-core 4.6GHz / E-core 3.4GHz | 25MB | DDR5-4800 | Intel UHD Graphics 770 |
| Core i7-12700 | 12 (8 P-core + 4 E-core) | 20 | P-core 2.1GHz / E-core 1.6GHz | P-core 4.8GHz / E-core 3.6GHz | 25MB | DDR5-4800 | Intel UHD Graphics 770 |
| Core i9-12900T | 16 (8 P-core + 8 E-core) | 24 | P-core 1.4GHz / E-core 1.0GHz | P-core 4.8GHz / E-core 3.6GHz | 30MB | DDR5-4800 | Intel UHD Graphics 770 |
| Core i9-12900 | 16 (8 P-core + 8 E-core) | 24 | P-core 2.4GHz / E-core 1.8GHz | P-core 5.0GHz / E-core 3.8GHz | 30MB | DDR5-4800 | Intel UHD Graphics 770 |
Operating System
Operating System**[1]
- Windows® 11 Home
- Windows 11 Home Single Language
- Windows 11 DG Windows 10 Pro 64
- Ubuntu Linux LTS
- Red Hat Enterprise Linux 8.7 (certified only, for detailed and latest information, please visit Red Hat Certified Hardware)
- No operating system
Notes:
- Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID, Human Presence Detection, etc.
Graphics
Discrete Graphics Offering***
| Graphics | Memory | Power | Connector | SLI / NVLink |
| Quadro® P400 | 2GB GDDR5 | 30W | 3x miniDP 1.4 | None |
| Quadro P620 | 2GB GDDR5 | 40W | 4x miniDP 1.4 | None |
| NVIDIA T400 4GB | 4GB GDDR6 | 40W | 3x miniDP 1.4 | None |
| NVIDIA T600 | 4GB GDDR6 | 40W | 4x miniDP 1.4 | None |
| NVIDIA T1000 | 4GB GDDR6 | 50W | 4x miniDP 1.4 | None |
| NVIDIA T1000 8GB | 8GB GDDR6 | 50W | 4x miniDP 1.4 | None |
Notes:
- Discrete graphics support may vary by configurations such as processor selection or power supply wattage.
Monitor Support
Monitor Support
Onboard graphics supports up to 4 independent displays via (onboard DP, onboard HDMI®, punch out port 1 [VGA / HDMI / DP / USB-C®], and punch out port 2 [VGA / HDMI / DP]);
the number of maximum monitors also depends on the discrete graphic card in use
Chipset
Memory
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Type
| Disk Type | Interface | RPM | Offering | Security |
| M.2 2280 SSD | PCIe® NVMe®, PCIe 4.0 x4 Performance | - | 256GB / 512GB / 1TB / 2TB | Opal 2.0 |
Storage Controllers
| Storage Controller | Type | Interface | RAID | Cache |
| Integrated NVMe controller | Standard | PCIe NVMe | 0/1 | None |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Power Supply
Power Supply**[1]
| Power | Type | Efficiency | Key Features |
| 170W | Adapter | 90% | 100V - 240V |
| 230W | Adapter | 90% | 100V - 240V |
Notes:
- When work with TIO monitor, an appropriate power adapter is needed. Customer may need to: • Order a Tiny for TIO MT (30FC or 30FD) models • Or order an additional 230W power adapter if original power adapter is less than 230W
Design
Mechanical
Dimensions (WxDxH)[1]
| Models | Dimensions |
| Tiny only | 179 x 182.9 x 37mm with rubber feet (7.0 x 7.2 x 1.5 inches with rubber feet) |
| Tiny & ODD | 204.2 x 186.6 x 64 mm with rubber feet (8.04 x 7.35 x 2.52 inches with rubber feet) |
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
Optional Ethernet
One additional ethernet adapter support, up to one additional 2.5GbE port
• Gigabit Ethernet, Intel I350-T2, 2x RJ-45, PCIe x4
• Gigabit Ethernet, Intel I350-T4, 4x RJ-45, PCIe x4
• Gigabit Ethernet, Broadcom BCM5720, 2x RJ-45, PCIe x1
• Gigabit Ethernet, Broadcom BCM5719, 4x RJ-45, PCIe x4
• 2.5 Gigabit Ethernet, Realtek RTL8125BGS, 1x RJ-45, BTB
WLAN + Bluetooth®**[1]
- Realtek RTL8822CE, 802.11ac Dual Band 2x2 Wi-Fi® + Bluetooth 5.0
- Intel Wireless-AC 9560, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 5.1
- Realtek Wi-Fi 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi + Bluetooth 5.1
- Intel Wi-Fi 6 AX201, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1
- Intel Wi-Fi 6 AX201, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, Intel vPro® support
- AMD Wi-Fi 6E RZ616, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1
- Intel Wi-Fi 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, Intel vPro technology support
- No WLAN and Bluetooth
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
Ports[1]
Front Ports
- 1x USB 3.2 Gen 2
- 1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging)
- 1x USB-C 3.2 Gen 2
- 1x headphone / microphone combo jack (3.5mm)
Rear Ports[2]
- 1x HDMI 2.1 TMDS
- 1x DisplayPort™ 1.4
- 2x USB 3.2 Gen 1 (one supports Smart Power On)
- 2x USB 3.2 Gen 2
- 1x Ethernet (RJ-45)
Optional Rear Ports
- Punch out port 1 (one of VGA / DisplayPort / HDMI / serial / USB-C 3.2 Gen 1 with DisplayPort and PD 3.0 functions)
- Punch out port 2 (one of VGA / DisplayPort / HDMI / serial / RJ-45)
- 1x USB-C 3.2 Gen 1 (DP and PD)
- 2x USB 3.2 Gen 1 (occupies port 1 and 2)
- 1x 2.5GbE RJ-45, via RTL8125BGS
- 2x GbE RJ-45, via additional PCIe adapter
- 4x GbE RJ-45, via additional PCIe adapter
- 1x Thunderbolt™ 4, via additional PCIe adapter
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt 3/4: 40 Gbit/s
- For video ports on discrete graphics, please see graphics section
Security & Privacy
Security
BIOS Security
- Administrator password
- Power-on password
- Hard disk password
- Boot sequence control
- Boot without keyboard and mouse
- Certificate based BIOS management
- Cover presence switch
- Self-healing BIOS
- Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
- Individual USB port disablement
Manageability
Service
Warranty[1]
Base Warranty**
- 1-year limited onsite service
- 2-year limited onsite service
- 3-year limited onsite service
- No base warranty
Notes:
- The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Certifications
Green Certifications[1]
Green Certifications[2]
- EPEAT™ Gold Registered
- ENERGY STAR® 8.0
- ErP Lot 3
- TCO Certified 9.0
- RoHS compliant
Notes:
- The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- EPEAT is registered where applicable, please see https://www.epeat.net for registration status by country.
Other Certifications
ISV Certifications
ISV Certifications
Please visit ISV certifications for Lenovo Workstations
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
