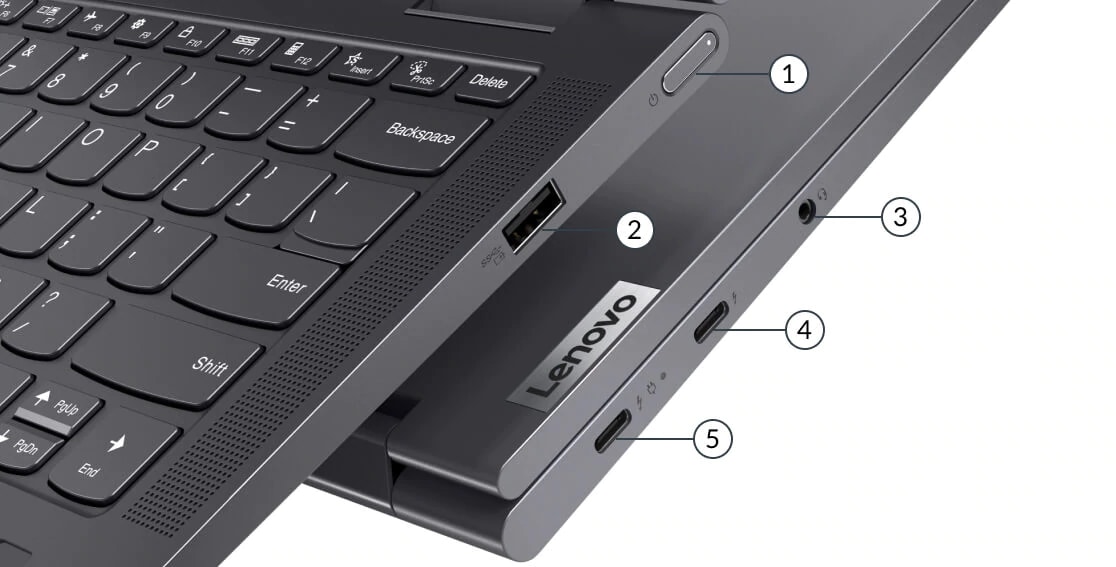

Overview
1. Power button | 4. Thunderbolt 4 |
2. USB 3.2 Gen 1 (Always On) | 5. Thunderbolt 4 |
3. Headphone / microphone combo jack (3.5mm) |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Core i5-1135G7 | 4 | 8 | 2.4GHz | 4.2GHz | 8MB | DDR4-3200 | Intel Iris® Xe Graphics |
| Core i7-1165G7 | 4 | 8 | 2.8GHz | 4.7GHz | 12MB | DDR4-3200 | Intel Iris Xe Graphics |
Operating System
Operating System**
- Windows® 11 Pro
- Windows 10 Pro 64
- Windows 10 Home 64
- Windows 10 Home 64 Single Language
Graphics
Monitor Support
Monitor Support
Supports up to 3 independent displays (native display and 2 external monitors via Thunderbolt™)
• Thunderbolt supports up to 7680×4320@60Hz
Chipset
Memory
Max Memory[1]
- 8GB soldered memory, not upgradable
- 12GB soldered memory, not upgradable
- 16GB soldered memory, not upgradable
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Type**
| Disk Type | Interface | Offering |
| M.2 2242 SSD | PCIe NVMe®, PCIe 3.0 x4 | 256GB / 512GB |
| M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | 1TB |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Sensor
Battery
Battery[1]
Integrated Li-Polymer 71Wh battery, supports Rapid Charge Express (get 3 hours of runtime with a 15-minute charge)
Max Battery Life[2]
MobileMark® 2014: 16.5 hr
MobileMark 2018@200nits: 12.3 hr
Local video (1080p) playback@150nits: 18.3 hr
Notes:
- Rapid Charge Express is only affected as hibernates or fully shut down the computer.
- All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Power Adapter**[1]
- 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
Notes:
- AC adapter offerings depend on the country.
Design
Display
Display[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
| 14" | FHD (1920x1080) | Multi-touch | IPS | 300 nits | Glossy | 16:9 | - | 72% NTSC | - | AGC Dragontrail™ glass |
Touchscreen
GF2 or OGM (On-glass Metal mesh) Direct Bonding, capacitive-type multi-touch, supports 10-point touch
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Multi-mode
Input Device
Pen**[1]
- Lenovo Digital Pen with replaceable AAAA alkaline battery, 4096 levels of pressure sensitivity. For more information, please read Lenovo Digital Pen Overview
- Lenovo Digital Pen without replaceable AAAA alkaline battery, 4096 levels of pressure sensitivity. For more information, please read Lenovo Digital Pen Overview
- No pen (purchase separately)
Touchpad
Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 69 x 104 mm (2.72 x 4.09 inches)
Notes:
- Battery needs to be purchased separately for the models without battery
- 2-level LED backlight
Mechanical[1]
Notes:
- The system dimensions and weight vary depending on configurations.
Connectivity
Network
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitation
Ports[1]
Standard Ports
- 1x USB 3.2 Gen 1 (Always On)
- 1x Headphone / microphone combo jack (3.5mm)
- 2x Thunderbolt 4 (support data transfer, Power Delivery 3.0, and DisplayPort™ 1.4)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt 3/4: 40 Gbit/s
Monitor Cable
Security & Privacy
Service
Environmental
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
